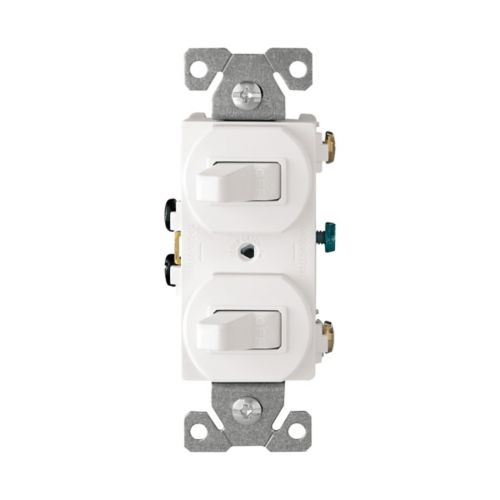

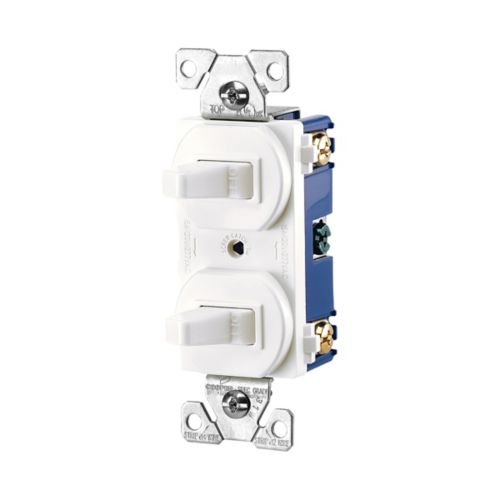

Eaton commercial grade combination switch, Stand, #14 - #12 AWG, 15A, Commer, 120/277V, bk and sd wiring, togg, Maint closure, Screw, Brass, wht, -20-60?C, (2) 1-pole, dplx, thermoplas
PRODUCT SPECIFICATIONS
| Type |
Standard
|
| Amperage Rating |
15A
|
| Voltage rating |
120/277 V
|
| Number of poles |
Single-pole
|
| Configuration |
(2) toggle
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Back and side
|
| Contact type |
Brass
|
| Switch type |
(2) single-pole
|
| Mounting method |
Flush
|
| Closure type |
Maintained
|
| Connector type |
Screw
|
| Material |
Thermoplastic
|
| Allowable wire size |
#14-12 AWG
|
| Operating temperature |
-20 to 60 °C
|
| Torque rating |
14 lbf-inch
|
| Style type |
Duplex
|
| Actuator |
Toggle
|
| Color |
White
|
