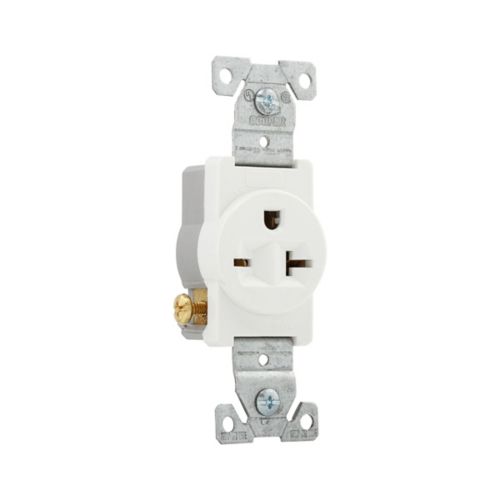

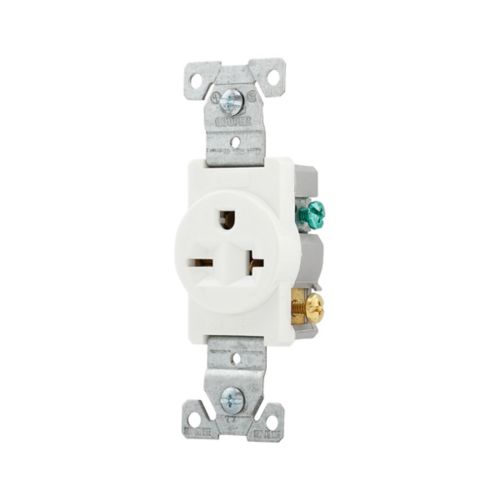

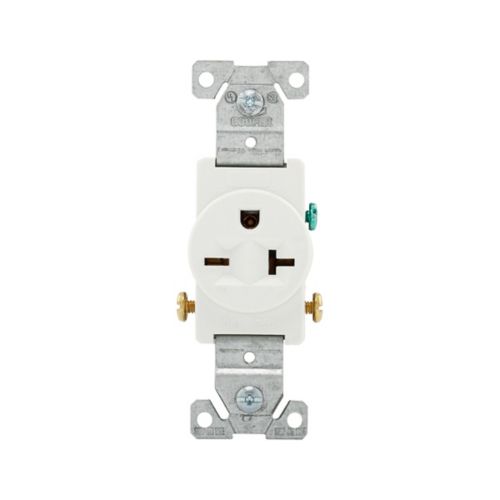

Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 250V, Side wire, White, Brass, Nylon face, PVC bottom, 6-20R, Single, Screw, PVC, ED Box
PRODUCT SPECIFICATIONS
| Device type |
Receptacle
|
| Type |
Single receptacle
|
| Amperage Rating |
20A
|
| Voltage rating |
250V
|
| Contact material |
Brass
|
| Features |
Auto-grounding
|
| Application |
Commercial
|
| Device grade |
Commercial
|
| Wiring method |
Side wire
|
| Number of wires |
3
|
| Mounting method |
Flush
|
| Number of poles |
Two-pole
|
| Style type |
Standard
|
| Material |
PVC
|
| Packaging type |
ED Box
|
| Color |
White
|
| Connection type |
Screw
|
| Allowable wire size |
#14-10 AWG
|
| NEMA configuration |
6-20R
|
| Torque rating |
14 lbf-inch
|
| Design type |
Straight blade
|
| Face/body material |
Nylon face
PVC bottom
|
| Receptacle type |
Single
|
